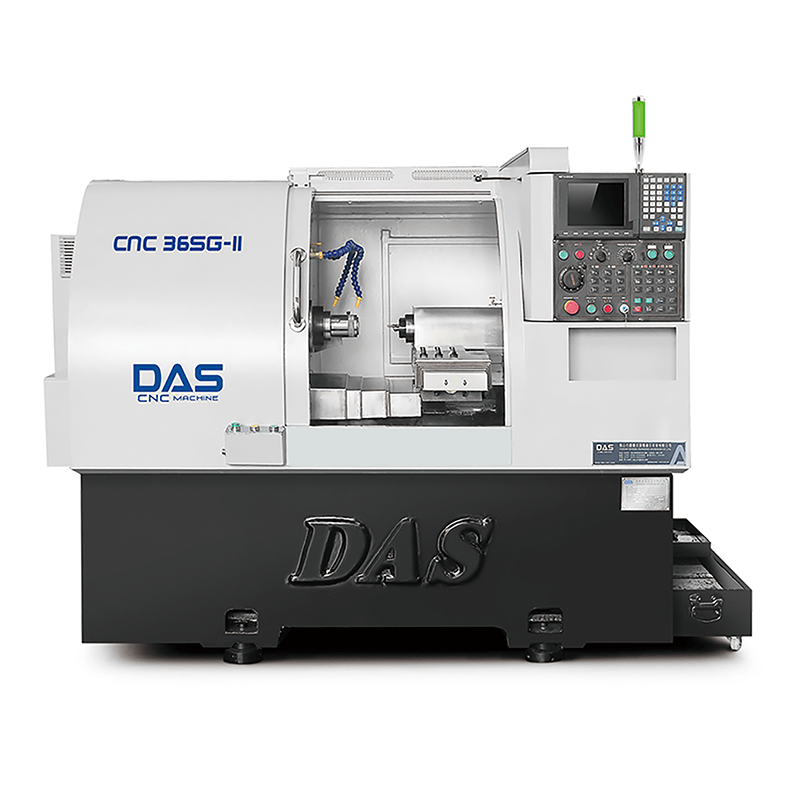

Guoqiang Daosheng
1.The machine tool adopts the row knife type ,the tool change precision is stable,the structure economy is high,and the power head can be expanded to realize the turning and milling composite processing
2.The double spindle adopts servo electric spindle,which has high speed accuracy and low noise
3.Using Taiwan’s precison linear guides and ball screw pairs,the ball screws are pre-stretched to increase rigidity and reduce the impact of machine tool cold and heat on machining accuracy
4.Guide rail lubrication uses volumetric distributor with oil injection,and regularly supplies oil for screw and guide rails the waste of lubrication oil and avoid environmental pollution
5.The vertical arrangement of the pallet and the large-capcaity chip discharge port provide a more ideal solution for the collection of iron filings .The chip conveyor can select side chip removal or rear chip workshop layout
6Two sets of high-pressure and large-flow water-cooling system are adopted .The knife seat is powerfully sprayed with water and has chip breaking function to prevent the spindle from receiving scraps
Model | DS-5-DII |
Max.processing length(mm) | 150 |
Spindle nose (mm) | A2-4(36 type) |
Bask shaft nose (sub-spindle)(mm) | A2-4(36 type) |
Tool holder center height (mm) | 90 |
Spindle speed(r/min) | 0-4500 |
Spindle bore(mm) | Ф46 |
Spindle motor power(kw) | 5.5 |
Back shaft motor power(kw) | 5.5 |
X1/Z1/X2/Z2 axis travel(mm) | 800/200 |
X1/Z1/X2/Z2 axis servo motor power(kw) | 1.3/0.85 |
Square knife tool apron(mm) | 20×20 |
Circular hole tool apron(mm) | Ф20 |
Back axis barrel clamp type | 161E push forward type |
Slippery course from | Linear guideway |
X/Z axis fast moving speed(m/min) | 24 |
Hydraulic station motor power(mm) | 1.5 |
Pump motor power(kw) | 180 |
Machine power(kw) | 18 |
Net weight(kg) | 4500 |
Machine dimensions(LxWxH)(mm) | 2060*1600*1820 |
