DAS an experienced CNC lathe manufacturer
providing stable and outstanding solutions to our
customers from different industries

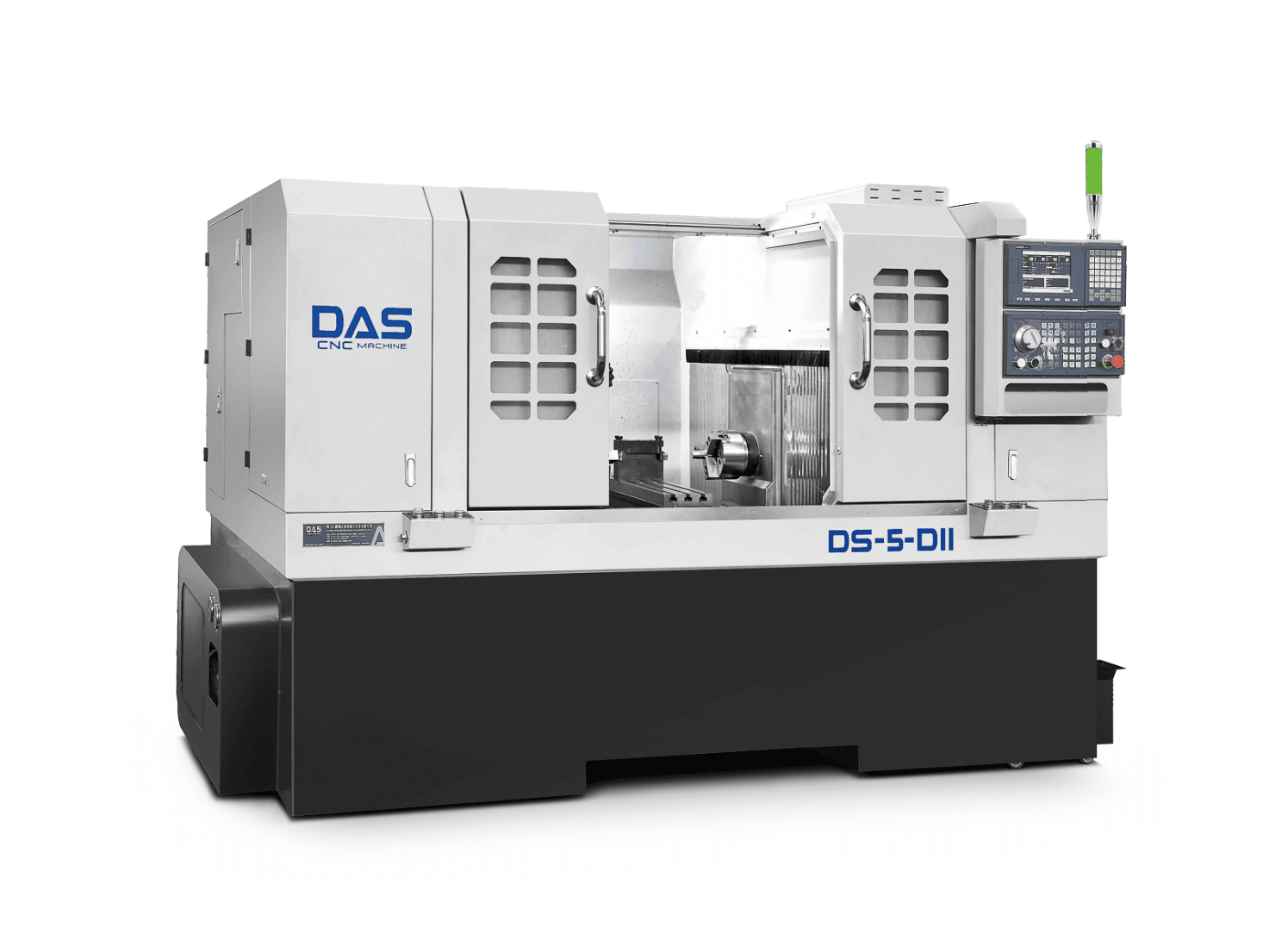

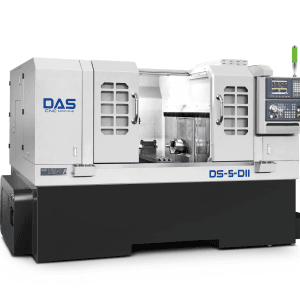

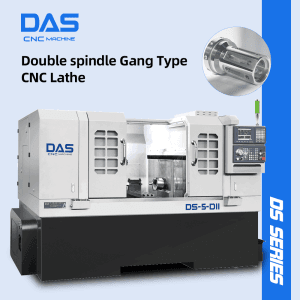

DS-5-DII:
The machine tool is equipped with a dual-channel control system to process two different parts (or the same parts) at the same time, such as drilling.
Dual spindle processing means synchronous processing. Gang tool loading has a fast response speed.

Specification | Unit | Value |
---|---|---|
Sub-spindle Barrel Clamp Type | – | 163E Push Forward Type |
Guide Form | – | Linear Guide Way |
X/Z Axis Fast Moving Speed | m/min | 24/24 (Factory Setting) |
Hydraulic Station Motor Power | kW | 1.5 |
Pump Motor Power | W | 750 |
Machine Power | kW | 19 |
Net Weight | kg | 4500 |
Machine Dimensions (L×W×H) | mm | 3000×1600×2000 |

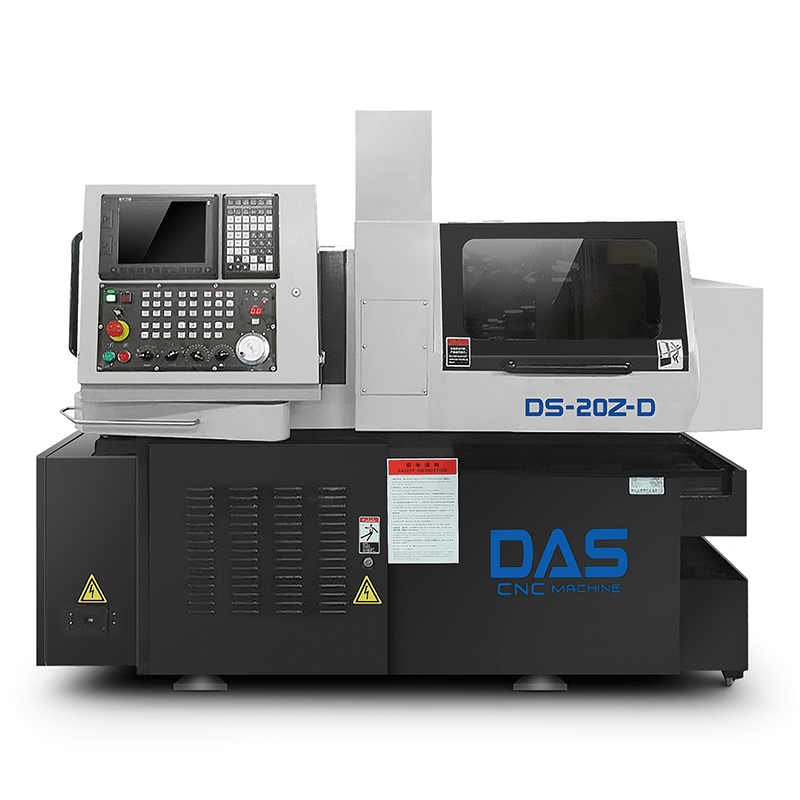

Swiss type CNC Lathe
- The base of machine tool is integrally cast with resin sand , its features strong shock vibration resistance and less deformation.Ensuring the high rigidity and high precision of the machine tool.
- Renowned electric appliances such as Yaskawa driver, servo motor andinverter as well as other world famous brands are used.
- Drive part ofmachine tool use Taiwan famous brand HIWIN/PMl highprecision P3 class ball bearing screw and high speed linear slide rail.

Specification | Unit | Value |
---|---|---|
Max. tapping diameter (radial) | mm | M6 |
Max. saw blade/milling cutter diameter (radial) | mm | Φ30 |
Coolant tank capacity | L | 100 |
Middle of spindle to ground height | mm | 1050 |
Machine Power | kW | 7 |
Net Weight | kg | 1780 |
Machine Dimensions (L×W×H) | mm | 1750×910×1700 |

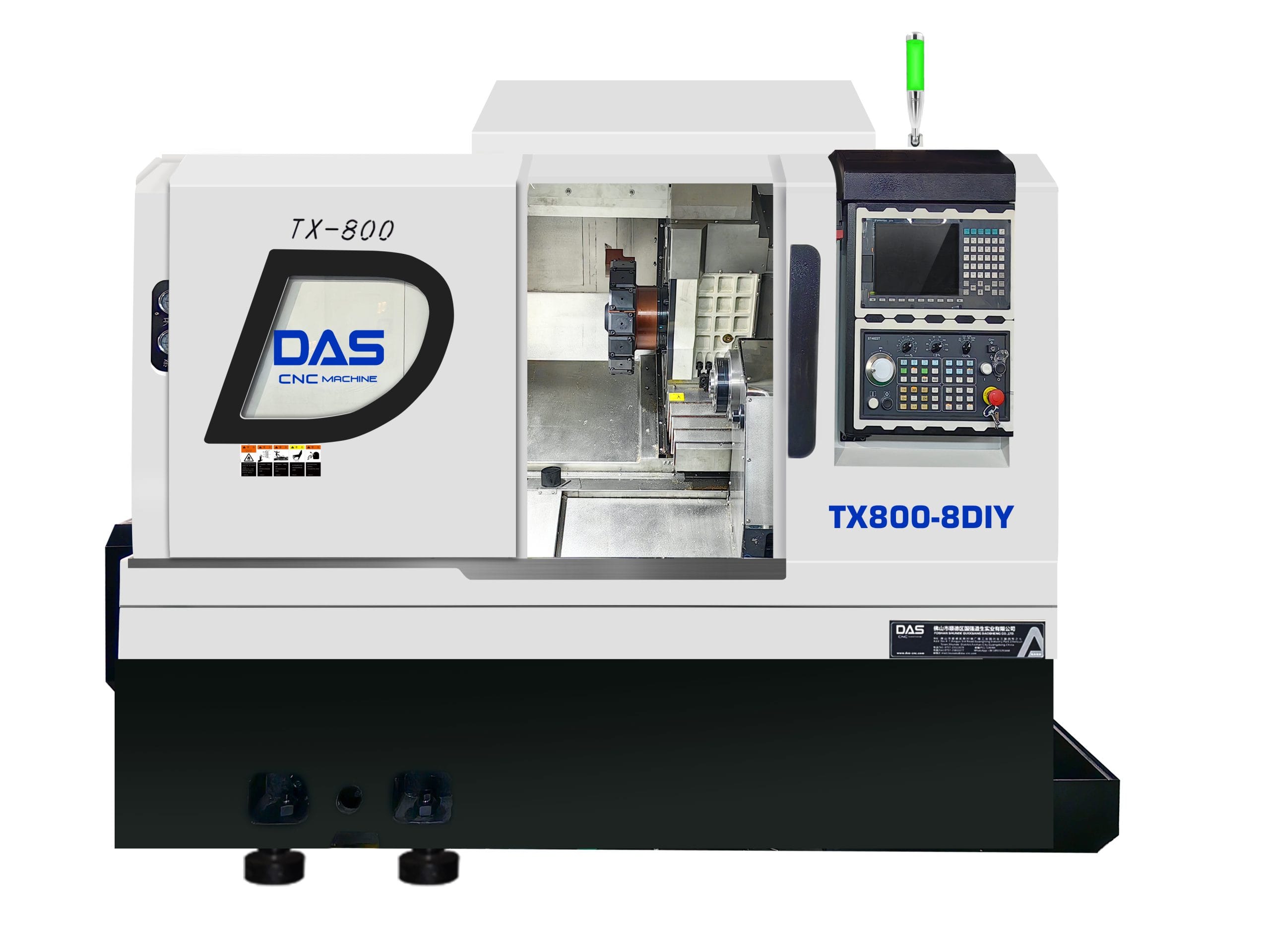

TX800-8DIY:
Dual spindles increase the processing space, and the tool continues processing after the sub-spindle receives the material;
Dual spindle single turret Y-axis function is suitable for processing both ends at one time, equipped with an 8-inch spindle and a 6-inch sub-spindle, a filtration system, a cooling system, and a drainage system.
The 10-inch control system panel is easy to operate, equipped with a handwheel manual control, and more efficient.

Specification | Unit | Value |
---|---|---|
Square Tool Holder Size | mm | 25×25 |
Round Hole Tool Holder Size | mm | Φ32 / Φ40 |
Power Head Servo Motor | kW | 8.8kW (10000r/min) |
Turret Servo Motor | kW | 0.75kW (3000r/min) |
X/Y/Z1/Z2 Axis Moving Speed | m/min | X:24 / Y:15 / Z:24 / Z2:24 |
Hydraulic Station Motor Power | kW | 1.5 |
Machine Power | kW | 49 |
Net Weight | kg | 6300 |
Machine Dimensions (L×W×H) | mm | 2700×1800×2000 |

WHY CHOOSE US

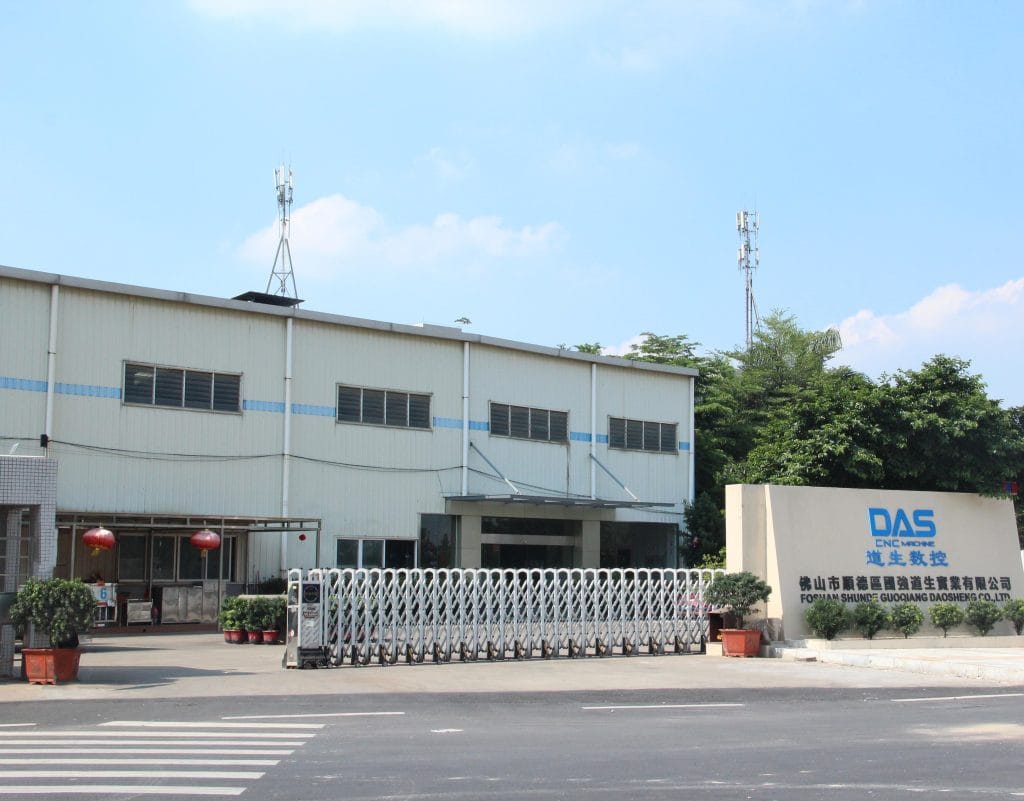

Foshan Shunde Guoqiang Daosheng Industrial Co.,Ltd is located in the commercial center of the pearl river delta——Chencun Town, Shunde District, Foshan City.The company covers an area of nearly 17,000+ square meters.The company was founded in 2003, is specialized in creating unmanned, intelligent production equipment for the direction.It is a manufacturer of numerical control equipment and automation equipment integrating R&D,design, production,sales and after-sales.
