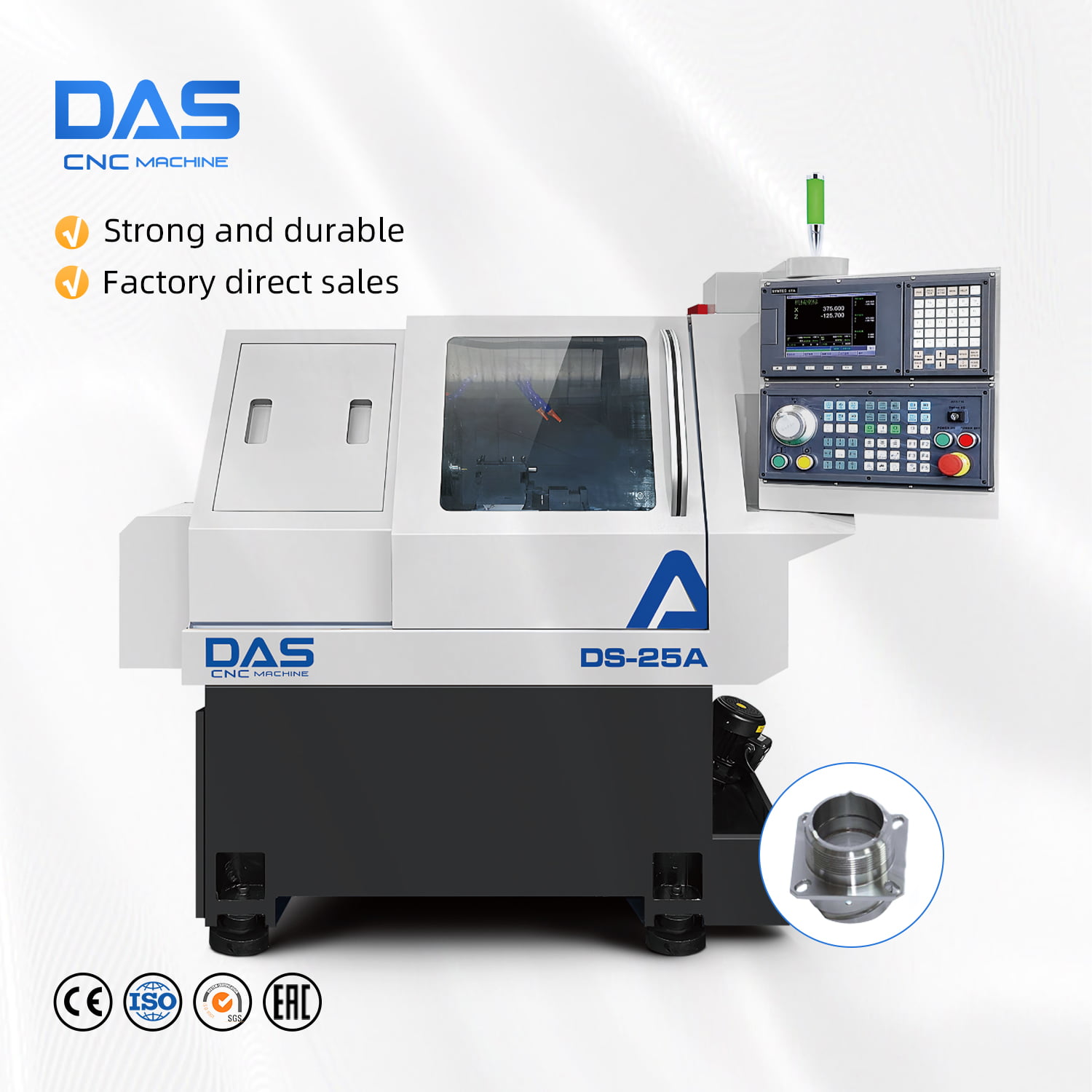

DS-25A small turning cnc lathe machine SYNTEC GSK controller

Optional tool holder stabilizes raw materials, supports simple automation, compact design with minimal space requirements.

10 People watching this product now!
Category: Tag:
描述

DAS FLAT BED GANG TYPE 32 MM SPINDLE BORE MINI CNC LATHE MACHINE

Compatible with simple automation systems, compact size, minimal space requirements, high precision up to ±0.035mm



Product

ItemUnitDS-20ADS-25A
Max.Swing DiametermmΦ360Φ360
Workbench RotationmmΦ100Φ100
Max Process DiametermmΦ100Φ100
Max Process Lengthmm230230
Collet Model–20 Type25 Type
Spindle Speedr/min6000(Factory Setting 4500)6000(Factory Setting 4500)
Spindle BoremmΦ25Φ32
Spindle Center Heightmm5151
Spindle Motor Powerkw2.24
Tool Installation–Gang Type 16*16Gang Type 16*16
Hole Diameter Of Feeding RodmmΦ20Φ25
Max. Number Of Toolspcs6-76-7
X/Z Axis Travelmm500/230500/230
X/Z Axis Motor Powerkw1.1/1.11.1/1.1
System Minimum Resolutionmm0.0010.001
X/Z Axis Fast Moving Speedm/min24(Factory Setting)24(Factory Setting)
Water Tank Motor Powerkw0.350.35
Machine Powerkw68
Net Weightkg13501360
Machine Dimensions(L*W*H)mm1730*1230*15401730*1230*1540
